Connecting to the iris360™ Web Interface

The iris360™ Web Interface lets you control your camera remotely using any wifi enabled device with a browser. Features include full camera control, review, and settings.

The process for connecting to the web interface depends on the type of device you are using. However all involve first setting up the wifi connection between your device and the camera. The steps below show the specific methods for each device.

How to connect using an IOS device

Select SETTINGS - Wi-Fi. Search for and select the iris360 device you wish to connect to.

How to connect using an IOS device

Enter Password

Enter the password (default is iris-360) and click on Join

Enter Password

Open Browser

After you are connected over wifi, open a browser window and enter 10.15.1.1 into the address bar, then press Go to display the Web UI.

Open Browser

Web UI Interface

You will then be presented with the Web UI home page

Web UI Interface

How to connect using an Android device

Select SETTINGS - Wi-Fi. Search for and select the iris360 device you wish to connect to.

How to connect using an Android device

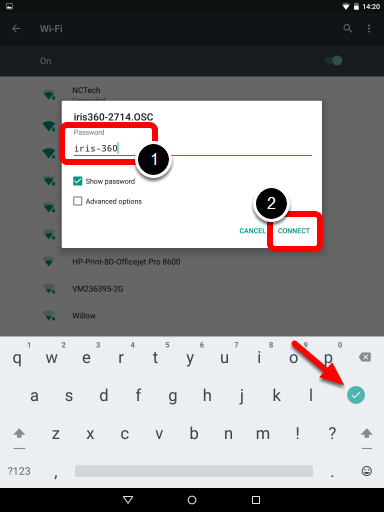

Enter Password

Enter the password (default is iris-360) and click on Connect

Enter Password

Open Browser

After you are connected over wifi, open a browser window and enter 10.15.1.1 into the address bar, then press Enter to display the Web UI

Open Browser

WEB UI Interface

You will then be presented with the Web UI main page.

WEB UI Interface

How to connect using a Windows PC

Select SETTINGS - Wi-Fi. Search for and select the iris360 device you wish to connect to.

How to connect using a Windows PC

Enter Password

Enter the password (default is iris-360) and press Enter

Open Browser

After you are connected over wifi, open a browser window and enter 10.15.1.1 into the address bar, then press Enter to display the Web UI

Open Browser

Web UI Interface

You will then be presented with the Web UI main page.

Web UI Interface

How to connect using a Mac

Select SETTINGS - Wi-Fi. Search for and select the iris360 device you wish to connect to.

How to connect using a Mac

Enter Password

Enter the password (default is iris-360) and click on Join

Enter Password

Open Browser

After you are connected over wifi, open a browser window and enter 10.15.1.1 into the address bar, then press Enter to display the Web UI

Open Browser

Web UI Interface

You will then be presented with the Web UI main page.

Web UI Interface

Web UI

The Web UI allows you to capture images and control and change settings on your iris360 camera.

There are 4 main sections:

  1. Status Bar
  2. Main Capture Settings
  3. Capture Button
  4. Section Icons

These are described individually in the following chapters.

Web UI
